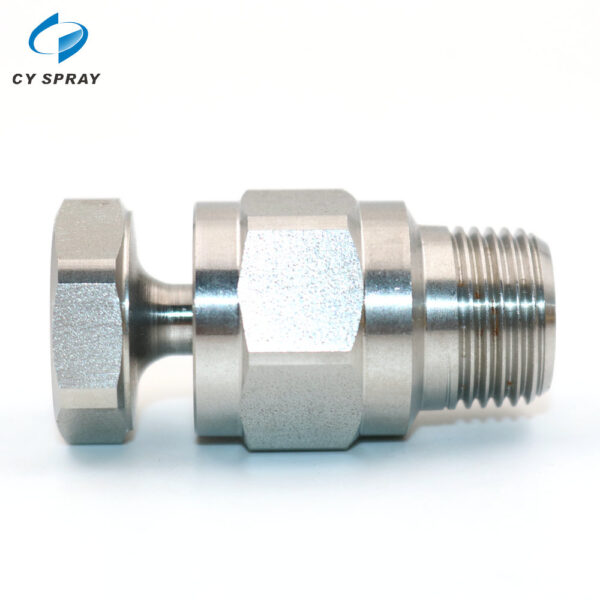

Spray Nozzle

1/4″ 120 or 150 or 180 degree Hollow Cone deflection Spray nozzle for ungrease treatment nozzle for spray

1.The spray nozzle of deflection 8686 shape for hollow cone,has uniform destributed impact surface ;
2.Deflection angle has three type :120.150,180 degrees and depends on the deflection cap ;
3.The recommended bigest pressure is 34 bar

Hollow cone spray pattern with a ring-shaped impact area

Small -to medium-sized drops
Deflection angles determined by deflector cap:120,150 and 180 degree included angle of spray at 0.7bar.
Uniform distribution over a wide range of flow rates and pressure.

Common Application

1) Special deflector structure design to produce hollow cone spray pattern
2) Large spray angles 120°,150°,180°available
3) Small to medium droplets
4) Widely used for dust suppression

Product Name KK series Hollow Cone Nozzle
Material Stainless Steel, Brass
Thread Type NPT, BSPT
Thread Size 1/8”, 1/4”, 3/8”
Flow Rate 0.4-56L/Min
Spray Angle 120° ,120°,150°
Packing Plastic Bag+ Carton, Special requirements are available
Custom Made Available


CY spraying & purification tech.CO.,LTD was founded in 1997 and located in Chang an town, Dong guan city, Guang dong province, China. Specializing in the production of spray nozzles, plastic nozzles, mist nozzles, water treatment nozzles, sand blasting nozzles and other metal or plastic products. We has been formed R&D, production and sales of high tech company network integration.

CY spraying & purification tech.CO.,LTD has Japanese automatic CNC lathes(precision<=2um) and measurement systems for the nozzle follow,angle,impact, force,water distribution ,particle size ,etc. Detection accuracy are reached international level that we can supply a god quality products to our customers.

Our products of high quality widely used in a variety of coating, electroplating, electronic, steel, environmental protection and dust removal, purification, paper making, textile industry, food, vehicles, engineering machinery, petrochemical industry, paper making, ship making , humidifying, disinfection, cleaning, sand blasting, water treatment etc.

We help you avoid the pitfalls to deliver the quality and value your spray nozzle need, on-time and on budget.
