Spray Nozzle

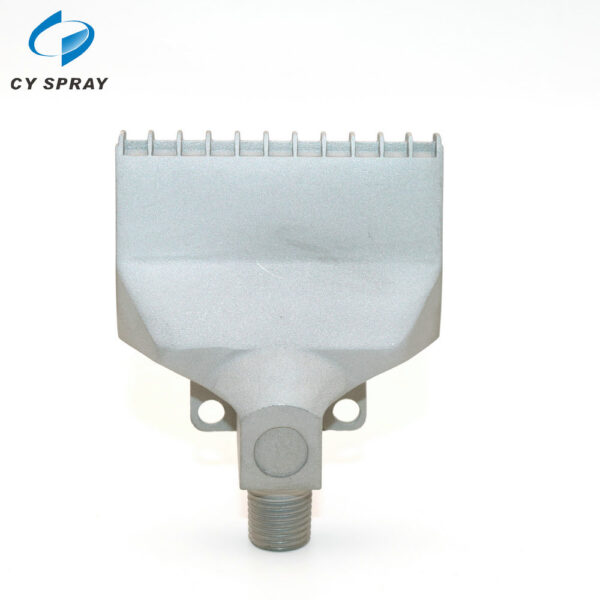

1/4" 973 Type Compressed Air Nozzle Air Blowing Nozzle

Category

(1) Generate efficient,controlled flat fan air pattern-for a uniform spray distribution.

(2) Designed to maintain spray pattern integrty.

(3) Available in materials that withstand high temperatures.

(4) Recessed orifices protect against external damage and offer air escape should the nozzles accidentaly be placed against a flat surface.

(5) Low noise levels.

(6) Can be mounted side-by side for air curtain applications.

Product Description

F Wind Jet Nozzle features a high impact, flat fan distribution of compressed air. It is available in durable ABS plastic or
aluminum alloy. It produces a quiet, efficient, controlled flat fan distribution of compressed air. The air stream is discharged through 16 precision orifices that ensure uniform distribution and spray pattern integrity.

Common Application

It fits through 1/4 inch inlet connection with BSPT male screw thread. Two convenient mounting holes on the ABS model ensure correct positioning on the header or manifold or fixed applications, offering uniform distribution of air curtain. Plastic F Wind Jet Nozzle withstands temperatures up to 77℃ at 7 bar. While aluminum alloy F Wind Jet Nozzle withstands temperature of 250℃ and pressure about 30 bar. The nozzles are designed for cooling, drying, and blow-off applications in conveyor, clean-in-place and hand-held set-ups.

Detailed Data

Product name Stainless steel 973 air blow jeter wind jet nozzle
Thread 1/4″ female or male BSPT
Material Plastic ABS PP; aluminum alloy;304 stainless steel
Application Cooling;Drying;Cleaning;Moving material;Direct Paper
Pressure 6-7 bar for aluminum alloy; 3-4 bar for plastic
Sample Sample is available
Delivery time 2 days for plastic;7 days for stainless steel/ alu
Feature high efficient flat fan shaped air current
