Spray Nozzle

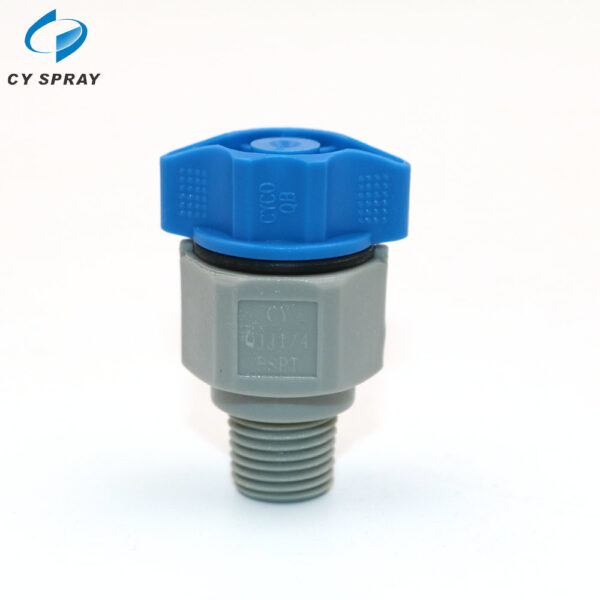

1/8" 1/4" 3/8"Plastic quick release solid full cone spray nozzle Washing treatment before plating

Category
  • chemical corrosion resistant material
  • no need for tools to install and remove nozzle tip
  • more selection for nozzle and joint size
  • more choice of flow range and degree
  • Recommended working pressure: 2.0kg/cm²
  • Flowrate tolerance:± 5%
  • Angle tolerance:± 5%

Product Description

Fulljet full cone spray tip is available with standard spray angles of 58°to85°at

1.5 bar and ten capacities ranging from 0.72 to 11.0 I/min at 2.8bar

Maximum pressure is 10 bar

Plus, the wide angle Quick Fulljet full cone spray tip has wide spray angles of 120° 0.7 bar and seven capacities ranging from 1.9 to 9.8 I/min at 2.8 bar.

Maximum pressure is 6 bar.

Common Application

  • PCB wet processing (cleaning, etching, stripping)
  • Display Panel Wet Processing
  • water treatment, electroplating, semiconductor, pollution control, and Coating

Detailed Data

Product Name QB full cone quick release nozzles
Material  PP,PVDF
Thread Type BSPT
Thread Size 1/8”, 1/4”,3/8″
Flow Rate 0.76-26.5L/Min at 2.8BAR
Spray Angle 58° -85°
Packing  Plastic Bag+ Carton, Special requirements are available
Custom Made Available
