Spray Nozzle

Corse thread nylon material silicone carbide bore carbide sand blast spray nozzle holder

The claw couplings are equipped with NBR rubber seals. The claw couplings are made of nylon (polyamide). Nozzle holders are made of nylon. The claw couplings must be secured with a pin after they are coupled. Working pressure 12 bar.

Product Description

Sandblasting couplings are designed to connect hoses with sandblasting nozzles. The sandblasting couplings comprise claw couplings with claw (lug) distance or 58 mm and couplings – nozzle holders with NPT female thread or 50 mm coarse UNC thread. To assemble, the hose must be inserted inside the ferrule of the coupling and secured by screwing it down to the ferrule.

The claw couplings are equipped with NBR rubber seals. The claw couplings are made of nylon (polyamide). Nozzle holders are made of nylon. The claw couplings must be secured with a pin after they are coupled. Working pressure 12 bar.

Common Application

Detailed Data

Product Picture Model Material Specifications

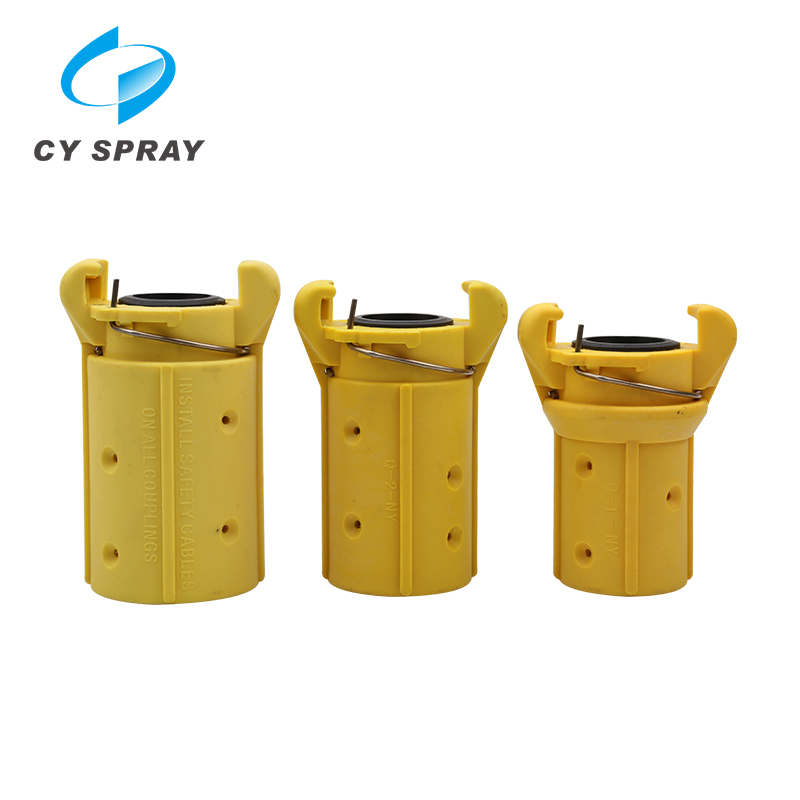

Corse thread nylon material silicone carbide bore carbide sand blast spray nozzle holder Q-1 PA6+25GF Quick joint , connecting pipe ID: 39mm (1 inch sand pipe )
Q-2 Quick joint,ID:49mm (1-1 / 4 inch sand pipe)
Q-3 Quick joint, nozzle diameter: 55mm (1-1 / 2 )

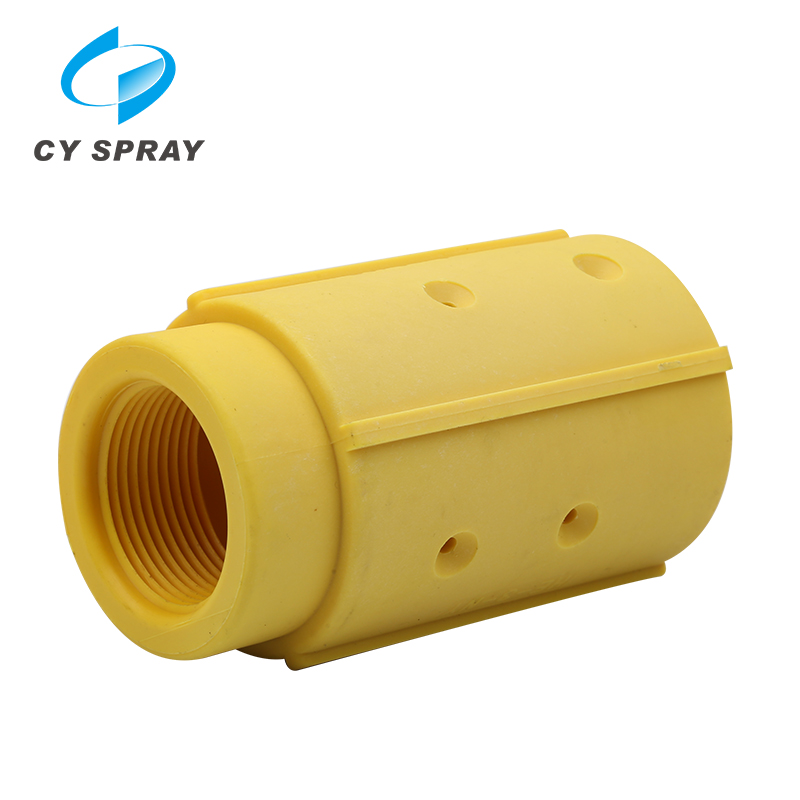

 Corse thread nylon material silicone carbide bore carbide sand blast spray nozzle holder MHE-1 PA6+25GF Nozzle joint with coarse thread, ID:39mm
MHE-2 Nozzle joint with coarse thread, ID:49mm
MHE-3 Nozzle joint with coarse thread,ID:55mm
 Corse thread nylon material silicone carbide bore carbide sand blast spray nozzle holder HE-1 PA6+25GF 1 – 1 / 4NPT thread nozzle joint , ID: 39mm
HE-2 Nozzle joint with 1-1/4NPT thread, ID:49mm
HE-3 Nozzle joint of 1-1/4NPT thread, ID:55mm

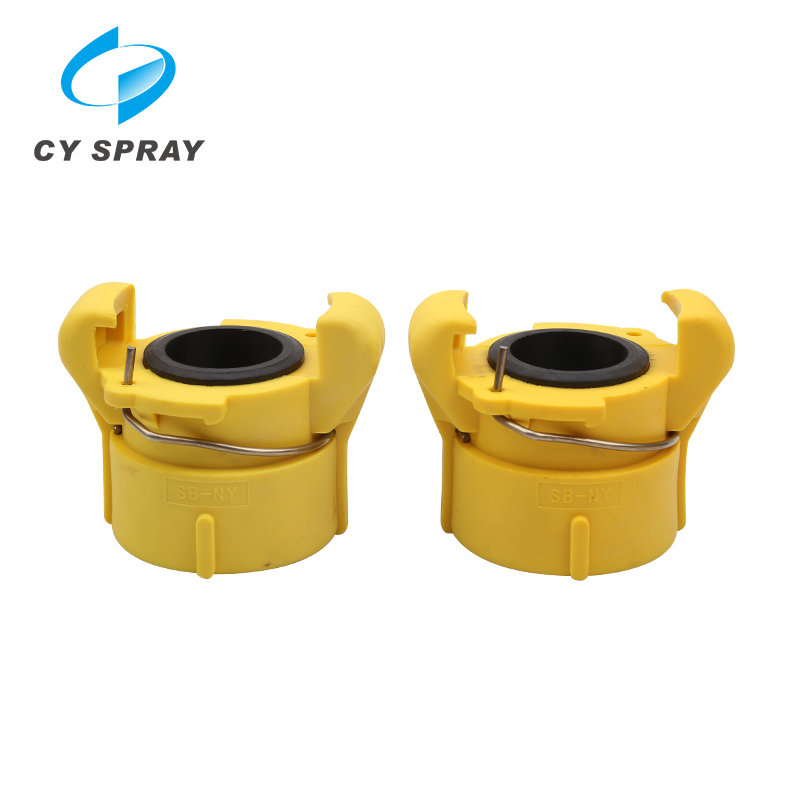

Corse thread nylon material silicone carbide bore carbide sand blast spray nozzle holder SB-NY PA6+25GF Coarse thread
Fine thread
