Spray Nozzle

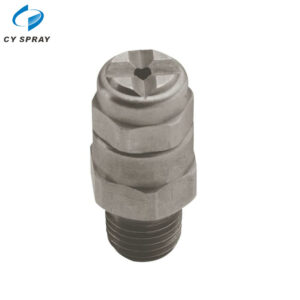

Stainless Steel Narrow Angle Full Cone Spray Water Jet Nozzles stainless steel solid jet accessories Solid cone


● Full cone nozzle are made in stainless steel which enhance performance of rust resistance, corrosion resistance and heat resistance.

● SS full cone nozzle are supplied for most automobile plants such as Bens, Audi and VW plants in auto industry, as well as for many other industries mainly for washing, rinsing, cooling, fire fighting.

● Its unique vane design ensures uniform spray distribution and consistant spray voverage.

●Large and open passage achieve anti-clogging and increase thoughout.

1.Narrow spray ,spray angle:15gree ,30degree

2.Spray pattern: Full cone

3.Material: Stainless Steel 303; Stainless Steel 304; Stainless Steel 316; and Brass

4.Thread size: 1/8″ to 2″ BSPT or NPT (Female thread)

5.Working Pressure: from 0.5bar to Dozens of bar; Usually, nozzles will spray perfectly under 3bar or larger pressure.

6..Narrow angle nozzle with fine manufacturing process, to achieve a precise specifications, to ensure the best performance.Novel blade design and large flow channel and excellent control characteristics of the jet spray distribution uniformity,

7.G series Jet Nozzle has removable cap and vane

8.Connection : Adjustable fitting; Split-Eyelet

Common Application

1. Quenching during heat treat process
2.Washing and Rinsing any conveyorised belts and fabrics
3. Gas scrubbing, washing and cooling
4. Humidification
5. Coating with chemicals.
6. Cooling canned foods.
7. Fire prevention.

Product name Narrow angle spray nozzle
Material Brass SS
Size 1/8,1/4,3/8,1/2,3/4,1,1-1/4,1-1/2,2,2-1/2,3,4,5
Application Washing,rinsing,dust suppression
MOQ 50pcs
Place of Origin China (Mainland)
Condition New
Package Safety exporting packing


CY spraying & purification tech.CO.,LTD was founded in 1997 and located in Chang an town, Dong guan city, Guang dong province, China. Specializing in the production of spray nozzles, plastic nozzles, mist nozzles, water treatment nozzles, sand blasting nozzles and other metal or plastic products. We has been formed R&D, production and sales of high tech company network integration.

CY spraying & purification tech.CO.,LTD has Japanese automatic CNC lathes(precision<=2um) and measurement systems for the nozzle follow,angle,impact, force,water distribution ,particle size ,etc. Detection accuracy are reached international level that we can supply a god quality products to our customers.

Our products of high quality widely used in a variety of coating, electroplating, electronic, steel, environmental protection and dust removal, purification, paper making, textile industry, food, vehicles, engineering machinery, petrochemical industry, paper making, ship making , humidifying, disinfection, cleaning, sand blasting, water treatment etc.
