Spray Nozzle

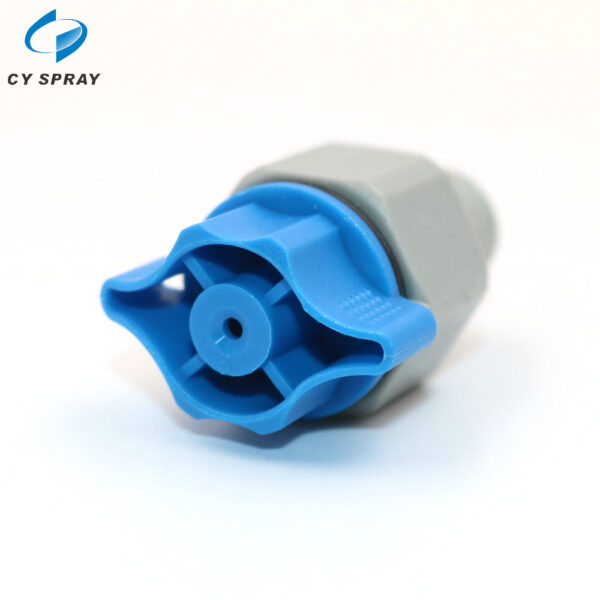

Manufacturer direct 1/4 full cone quick mounting plastic spray nozzles


Widely capacity choice
Available sizes: 1/8” , 1/4” and 3/8” ; Absolutely windtight between nozzle and spray head with an interior O-shaped NBR windtight circle; Easy split Nozzle; Special appearance of spray head for grasp; Available spray head shapes; QC Flat fan, QB Full cone and QA Hollow cone ; and various capacitys & angles arevaiable.

Easy nozzle replacement
Quick dismantling nozzle design, the nozzle and spray head can be quickly dismantled .You can rotate the spray head by 90 degree to install it ,or split it from nozzle by hand,so it can significantly downtime during maintenance.

Auto orienting spray head
There is an interior block, which can keep nozzle in right position without manual adjustment. Therefore , it can avoid quality problem caused by wrong orientation of nozzle.

Common Application

Anti-corrosion and wearable
Easy split noz PP( 25% ), Carbon Fiber PP (40% ) and PVDF, Featured high intensity, wearability and anti-corrosion ; suitable for washing and rinsing of corrosive solution, such as phosohate, acid&solvent; Max temperatures for glass Fiber PP is 82 °C; Max temperature for carbon Fiber is 120°C; while PVDF is high pure without pigment which can keep high purity in processing, and the max temperature is 148°C under 7KG pressure .

Product Name QB series nozzles
Material  PP
Thread Type BSPT
Thread Size 1/8”, 1/4”,3/8″
Flow Rate 0.5-13L/Min at 0.5-10BAR
Spray Angle 43° -67°
Packing  Plastic Bag+ Carton, Special requirements are available
Custom Made Available


CY spraying & purification tech.CO.,LTD was founded in 1997 and located in Chang an town, Dong guan city, Guang dong province, China. Specializing in the production of spray nozzles, plastic nozzles, mist nozzles, water treatment nozzles, sand blasting nozzles and other metal or plastic products. We has been formed R&D, production and sales of high tech company network integration.

CY spraying & purification tech.CO.,LTD has Japanese automatic CNC lathes(precision<=2um) and measurement systems for the nozzle follow,angle,impact, force,water distribution ,particle size ,etc. Detection accuracy are reached international level that we can supply a god quality products to our customers.

Our products of high quality widely used in a variety of coating, electroplating, electronic, steel, environmental protection and dust removal, purification, paper making, textile industry, food, vehicles, engineering machinery, petrochemical industry, paper making, ship making , humidifying, disinfection, cleaning, sand blasting, water treatment etc.
