1. Painting the TV screen
2. Surface finish of chocolate and candy
3. Clean out the dust on leather
4. Industrial tank cleaning

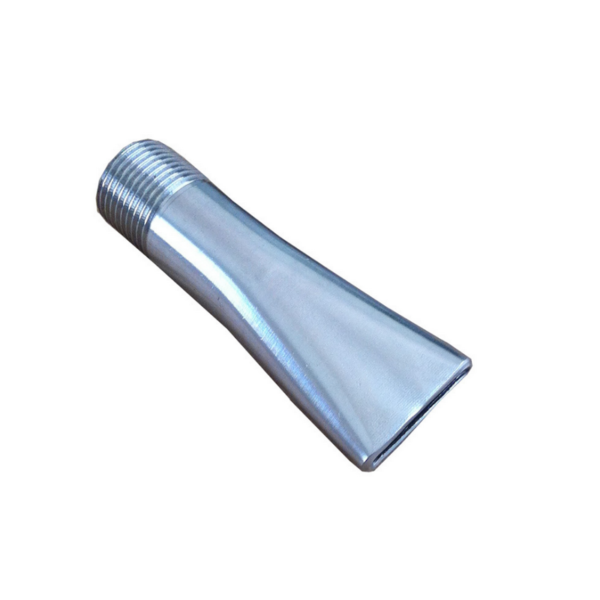

F10 SS air nozzle can emit high impulse and sector air flow, which is specially designed for all kinds of blowing cooling applications in the process treatment.
It fits through 1/4 inch inlet connection with BSPT male screw thread. Two convenient mounting holes on the ABS model ensure correct positioning on the header or manifold or fixed applications, offering uniform distribution of air curtain. Plastic F Wind Jet Nozzle withstands temperatures up to 77℃ at 7 bar. While aluminum alloy F Wind Jet Nozzle withstands temperature of 250℃ and pressure about 30 bar. The nozzles are designed for cooling, drying, and blow-off applications in conveyor, clean-in-place and hand-held set-ups.
| Type No | Thread size | A | B | C | D | E | F | L1 | L2 |
| F10-1/8-30 | 1/8 | 9 | 14 | 13 | 2.4 | 0.8-1.0 | 3.7 | 30 | 21 |
| F10-1/8-50 | 1/8 | 9 | 13.7 | 12 | 2.4 | 0.8-1.0 | 10.5 | 50 | 43 |
| F10-1/4-25 | 1/4 | 12 | 18.7 | 17 | 2.5 | 1 | 3 | 25 | 17 |
| F10-1/4-35 | 1/4 | 12 | 18.7 | 16.8 | 2.5 | 1 | 3.5 | 35 | 26 |
| F10-1/4-50 | 1/4 | 12 | 18.7 | 17 | 2.5 | 1 | 10 | 50 | 40 |
| F10-3/8-52 | 3/8 | 15.7 | 25 | 23 | 3.4 | 2 | 7 | 52 | 40 |
| F10-1/2-48 | 1/2 | 20 | 30 | 28 | 4 | 2 | 4 | 48 | 35 |
| F10-1/2-54 | 1/2 | 20 | 30 | 23.8 | 3 | 1 | 9 | 54 | 42 |
| F10-3/4-76 | 3/4 | 25 | 38 | 35 | 5.6 | 3 | 11 | 76 | 60 |
CY spraying & purification tech.CO.,LTD was founded in 1997 and located in Chang an town, Dong guan city, Guang dong province, China. Specializing in the production of spray nozzles, plastic nozzles, mist nozzles, water treatment nozzles, sand blasting nozzles and other metal or plastic products. We has been formed R&D, production and sales of high tech company network integration.
CY spraying & purification tech.CO.,LTD has Japanese automatic CNC lathes(precision<=2um) and measurement systems for the nozzle follow,angle,impact, force,water distribution ,particle size ,etc. Detection accuracy are reached international level that we can supply a god quality products to our customers.
Our products of high quality widely used in a variety of coating, electroplating, electronic, steel, environmental protection and dust removal, purification, paper making, textile industry, food, vehicles, engineering machinery, petrochemical industry, paper making, ship making , humidifying, disinfection, cleaning, sand blasting, water treatment etc.
We help you avoid the pitfalls to deliver the quality and value your spray nozzle need, on-time and on budget.
