Spray Nozzle

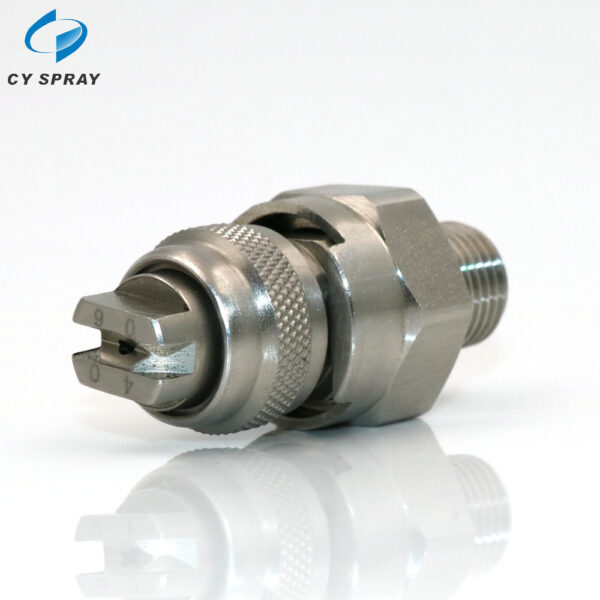

Stainless Steel Quick Combination Fan Spray Nozzle Quick Connection Type Flat Fan Nozzle


The Flat Fan Nozzle produce a flat fan-shaped spary pattern which with high impact.
It is available in a wide range of spray angle from 15 to 110 degree measured at 3 bar,the spray angle generally increase with pressure, as shown the performance table.
Uniform distribution with tapered edges for overlapping sprays.
High impact solid stream provides highest impact per unit area.
Flat fan nozzle can be used for chemical equipment washing and cleaning.

Flat fan spray pattern with uniform distribution Small-to medium-sizes drops.

Spray angles 65°to 110°at 2.8bar.

Fast and easy installation of spray tips without tools

Lower cost-nozzle body can be reused-only spray tips are replaced Miniature versions are ideal when smaller physical size and lower weight are important

lt has an easy-grip spray tips with a seal that remains attached to the tip to prevent accidental misplacement.

Common Application

  1. Chemical spraying
  2. Low pressure washing
  3. PCB manufacturing
  4. Product washing and rinsing
Product Name Quick Combination Flat fan Spray Nozzle
Material Stainless Steel, Brass
Thread Type NPT, BSPT
Thread Size 1/8”, 1/4”, 3/8”, 1/2”
Flow Rate 0.23-340 L/Min
Spray Angle 65° – 110°
Packing Plastic Bag+ Carton, Special requirements are available
Custom Made Available


CY spraying & purification tech.CO.,LTD was founded in 1997 and located in Chang an town, Dong guan city, Guang dong province, China. Specializing in the production of spray nozzles, plastic nozzles, mist nozzles, water treatment nozzles, sand blasting nozzles and other metal or plastic products. We has been formed R&D, production and sales of high tech company network integration.

CY spraying & purification tech.CO.,LTD has Japanese automatic CNC lathes(precision<=2um) and measurement systems for the nozzle follow,angle,impact, force,water distribution ,particle size ,etc. Detection accuracy are reached international level that we can supply a god quality products to our customers.

Our products of high quality widely used in a variety of coating, electroplating, electronic, steel, environmental protection and dust removal, purification, paper making, textile industry, food, vehicles, engineering machinery, petrochemical industry, paper making, ship making , humidifying, disinfection, cleaning, sand blasting, water treatment etc.

We help you avoid the pitfalls to deliver the quality and value your spray nozzle need, on-time and on budget.
